Vintage Mustang Wiring Diagrams
Make a relay switch for your Halogen headlights
These files were downloaded from www.wabba.net, and I cannot vouch for their accuracy, nor claim any proprietary interests. Use them with all due caution.
To download, right click on the link, and use "SAVE AS" to store them on your computer. You'll need to use PKZIP to unzip the .ZIP files into .TIFF format.

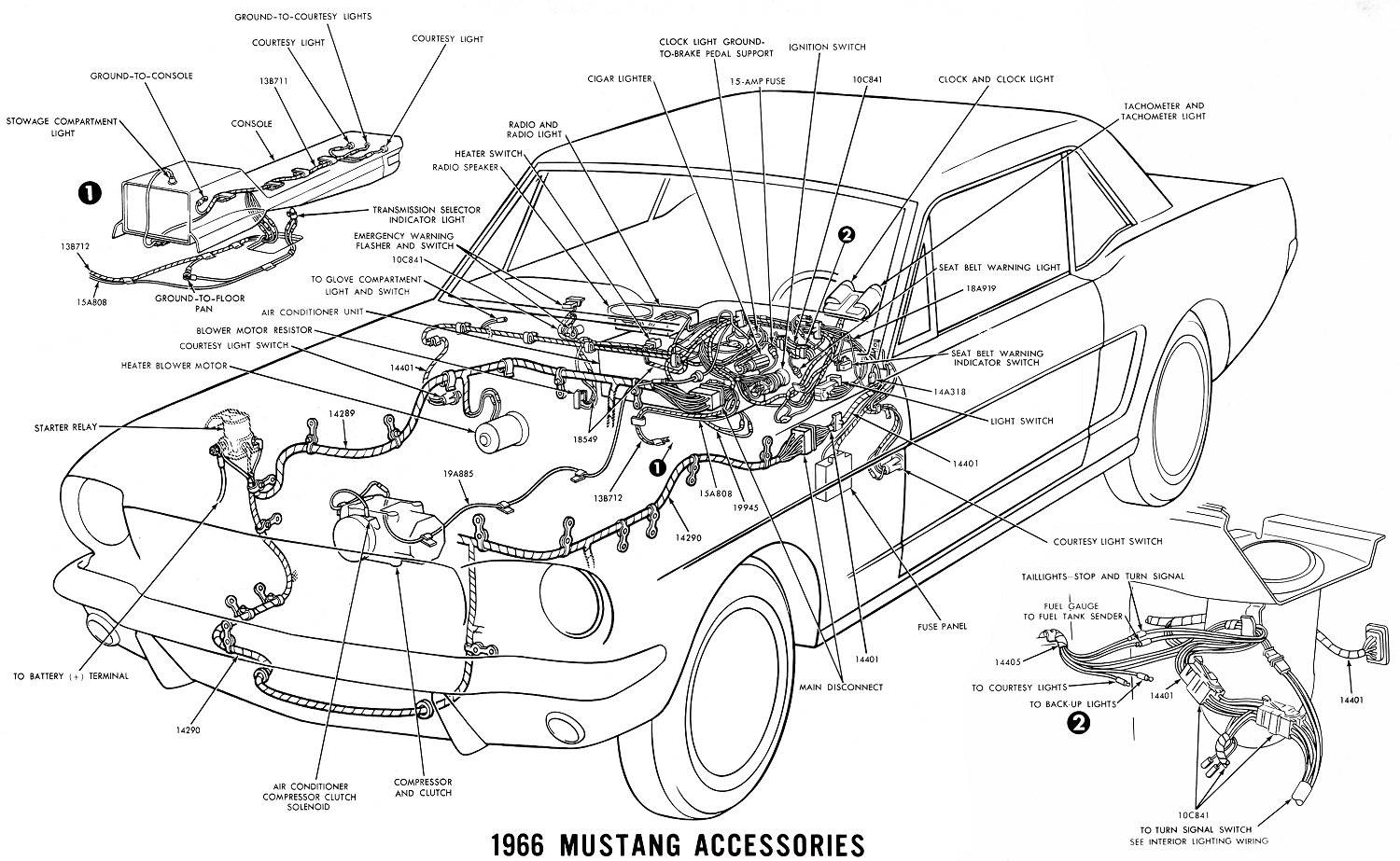

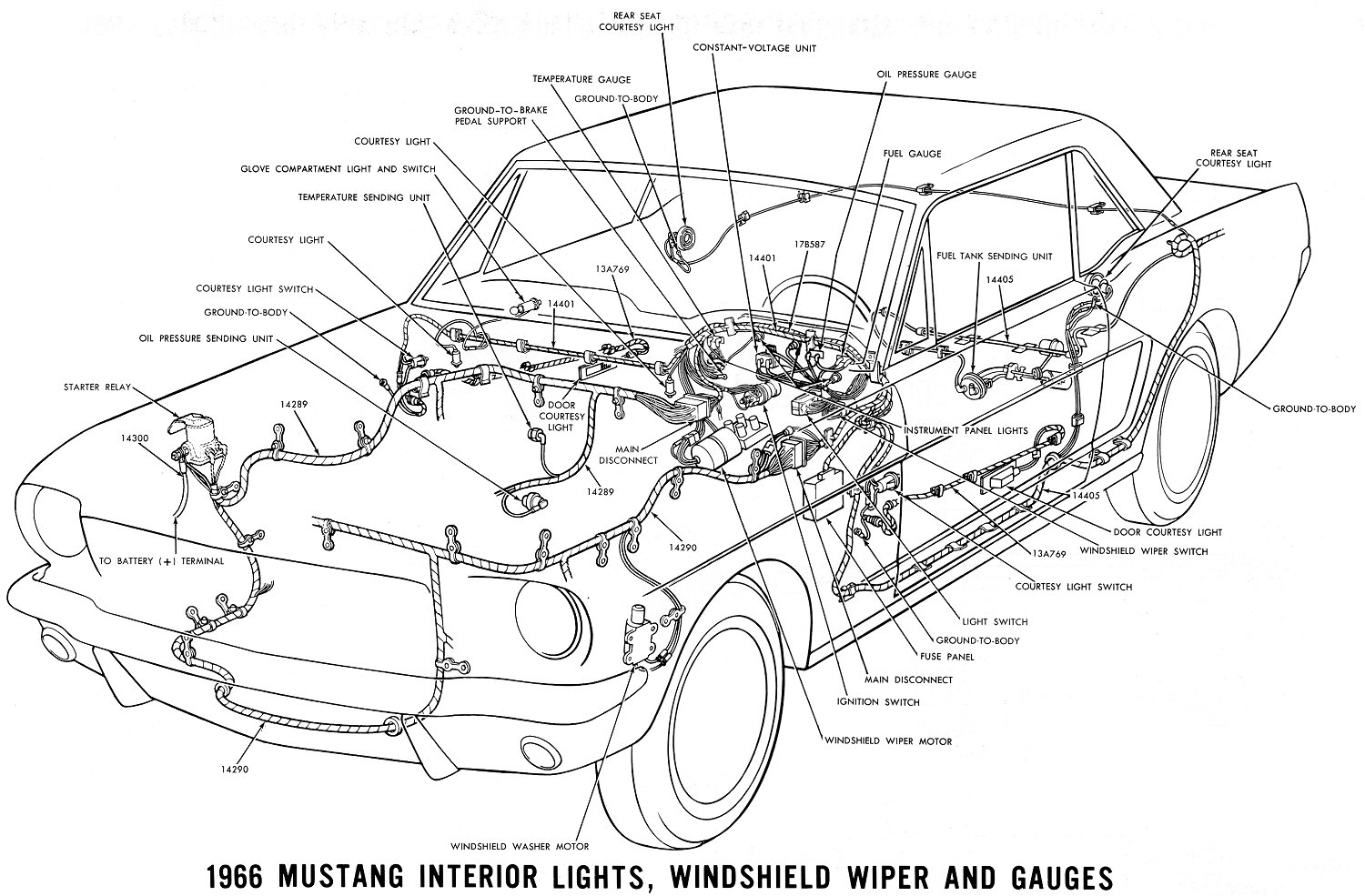

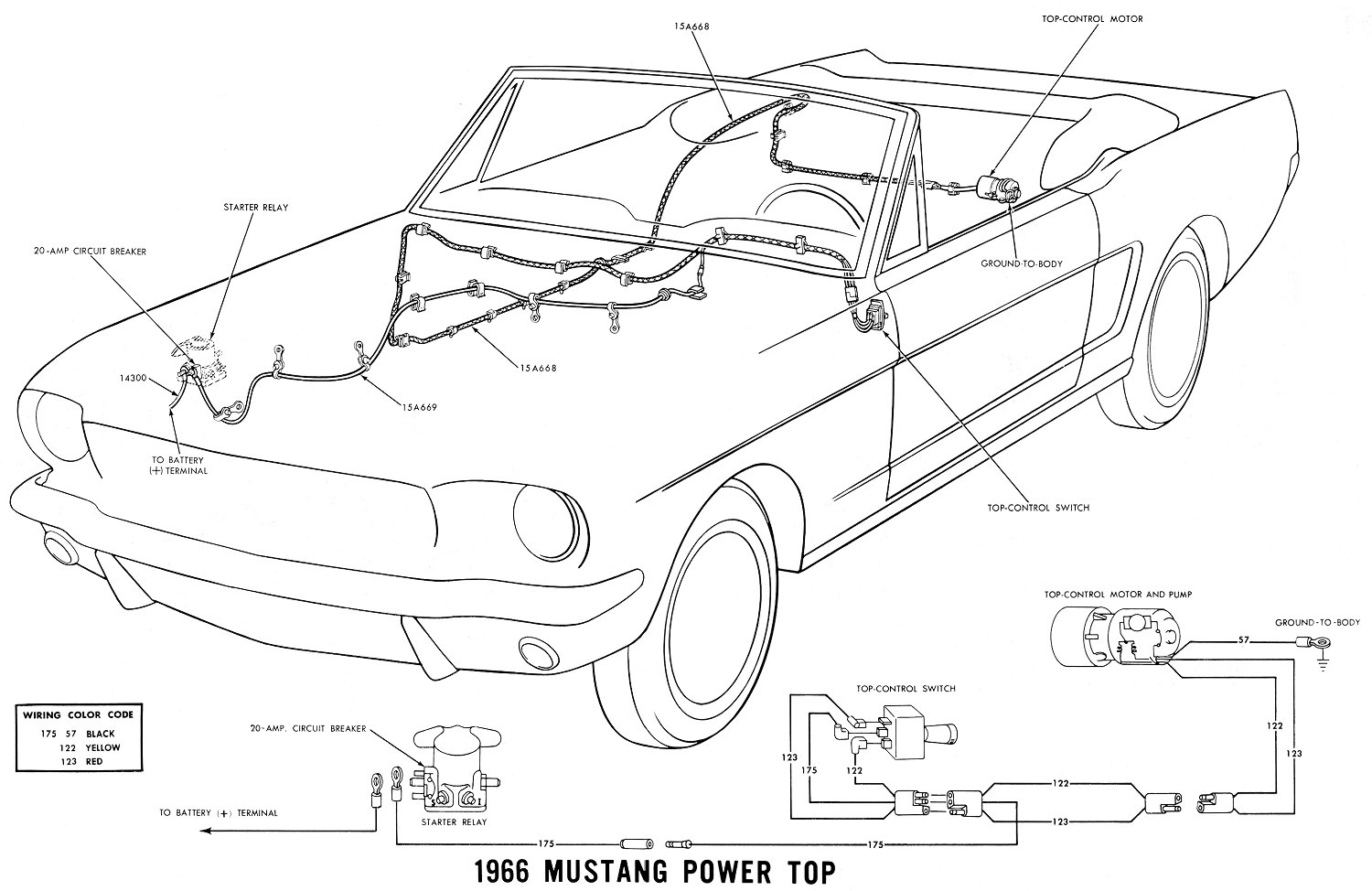

The following 1966 JPG files provided courtesy of Dave Hammar.
